1 / 6Bucket Elevator
Conveying SystemsProduct Introduction

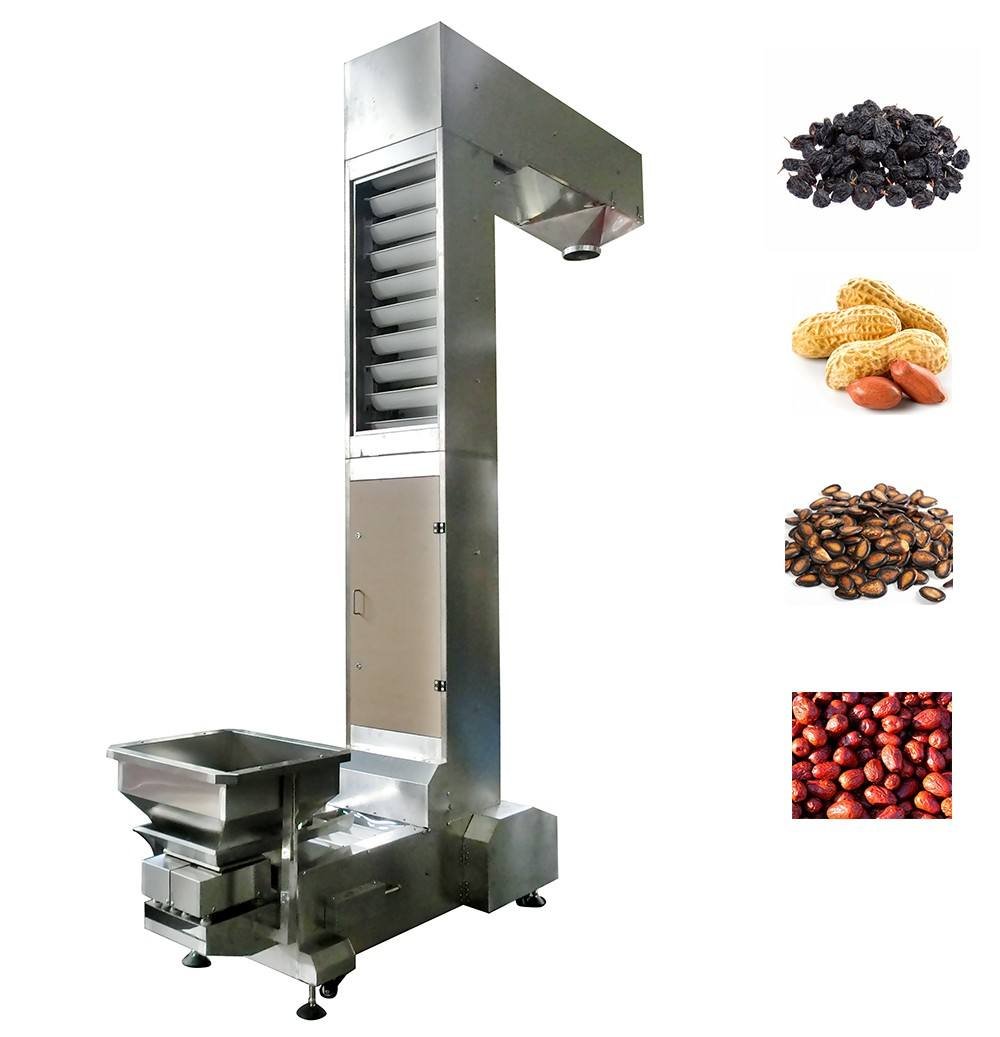

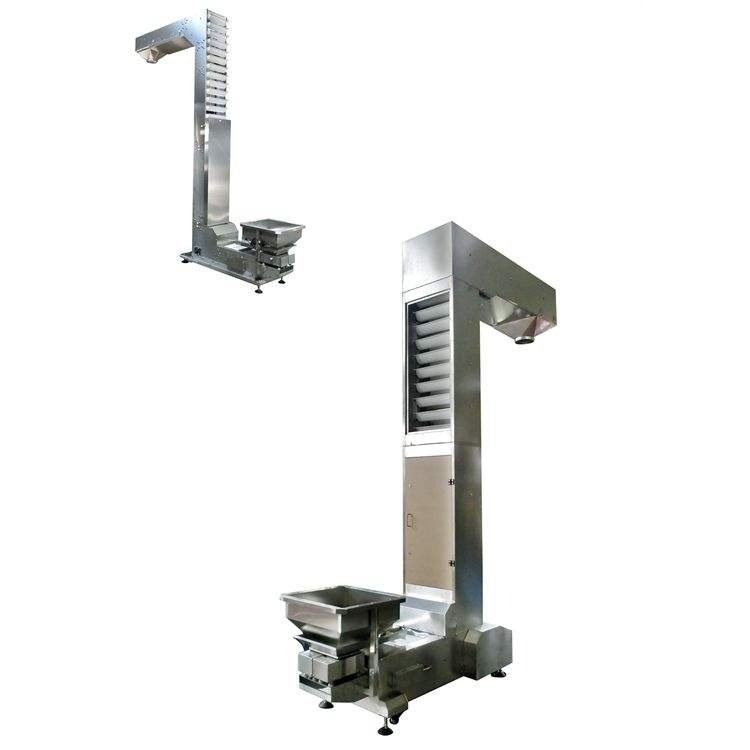

Our Bucket Elevator is a compact, high-efficiency vertical conveying solution for lifting bulk powders, granules, seeds, and pellets to significant heights with minimal footprint. The enclosed bucket chain or belt system prevents material degradation and dust emission, making it the preferred choice for flour mills, grain silos, spice plants, and chemical facilities.
What This Machine Does
This size reduction machine grinds, pulverizes, or crushes raw materials into fine powders or desired particle sizes. It's a critical upstream process for powder-based manufacturing lines.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Type | Centrifugal / Continuous discharge |
| Lifting Height | 3 m – 40 m |
| Capacity | 1 m³/hr – 100 m³/hr |
| Bucket Material | HDPE / MS / SS 304 |
| Belt/Chain Type | Rubber belt / Steel chain |
| Casing Material | MS / SS 304 |
| Drive | Head pulley gearbox motor |
| Product Types | Grain, powder, granules, pellets, seeds |
Flow Chart
Boot Inlet (bottom) → Buckets Scoop Material → Vertical Elevator Leg → Head Pulley → Centrifugal / Gravity Discharge → Outlet Chute
Line Features & Advantages
- Vertical lifting up to 40 m height with minimum floor space requirement
- Enclosed casing completely eliminates dust emission during operation
- Centrifugal and continuous discharge options for different product types
- HDPE or SS buckets available for food-grade and corrosion-resistant applications
- High capacity with low power consumption vs. alternative vertical conveyors
- Inspection doors at boot and head sections for easy access and maintenance
Frequently Asked Questions
Q: What is the difference between centrifugal and continuous discharge bucket elevators?
A: Centrifugal discharge is used for free-flowing granules and seeds — buckets fling material out at high speed. Continuous (gravity) discharge uses overlapping, closely-spaced buckets for fragile, sticky, or sluggish materials to prevent breakage.
Q: Can it handle flour and fine powders without clogging?
A: Yes, with appropriate bucket design, inlet boot geometry, and belt tension, our bucket elevators handle flour, fine powders, and low bulk-density materials reliably without clogging or bridging.
Q: What is the production capacity of the Bucket Elevator?
A: The Bucket Elevator is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Bucket Elevator?
A: Power requirements vary based on the specific model and capacity selected. Our Bucket Elevator models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
