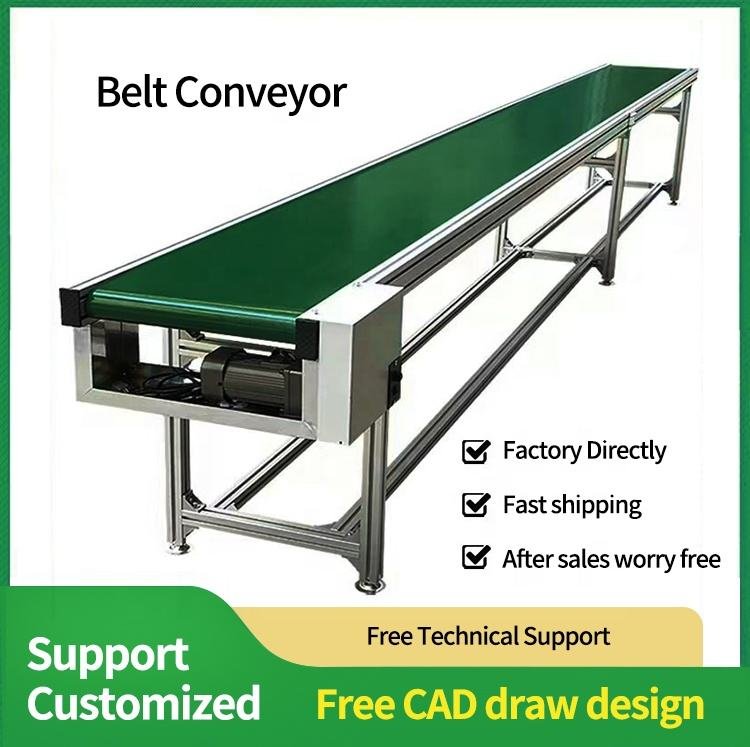

1 / 11Belt Conveyor
Conveying SystemsProduct Introduction
Our Belt Conveyor is the most widely used continuous material transport solution for moving bulk materials, packaged goods, and products between workstations. Available in flat, inclined, and curved configurations with rubber, PVC, PU, or SS mesh belts, it serves food processing, packaging, warehousing, and industrial production lines reliably and efficiently.
What This Machine Does
This conveying system transports bulk materials, products, or packages between processing stages. It automates material flow, reducing manual handling and increasing production efficiency.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Belt Width | 200 mm – 2000 mm |
| Length | 1 m – 100 m (custom) |
| Capacity | Up to 500 tonnes/hr (bulk) |
| Speed | 0.05 – 3.5 m/s (VFD adjustable) |
| Belt Material | Rubber / PVC / PU / SS mesh / Modular plastic |

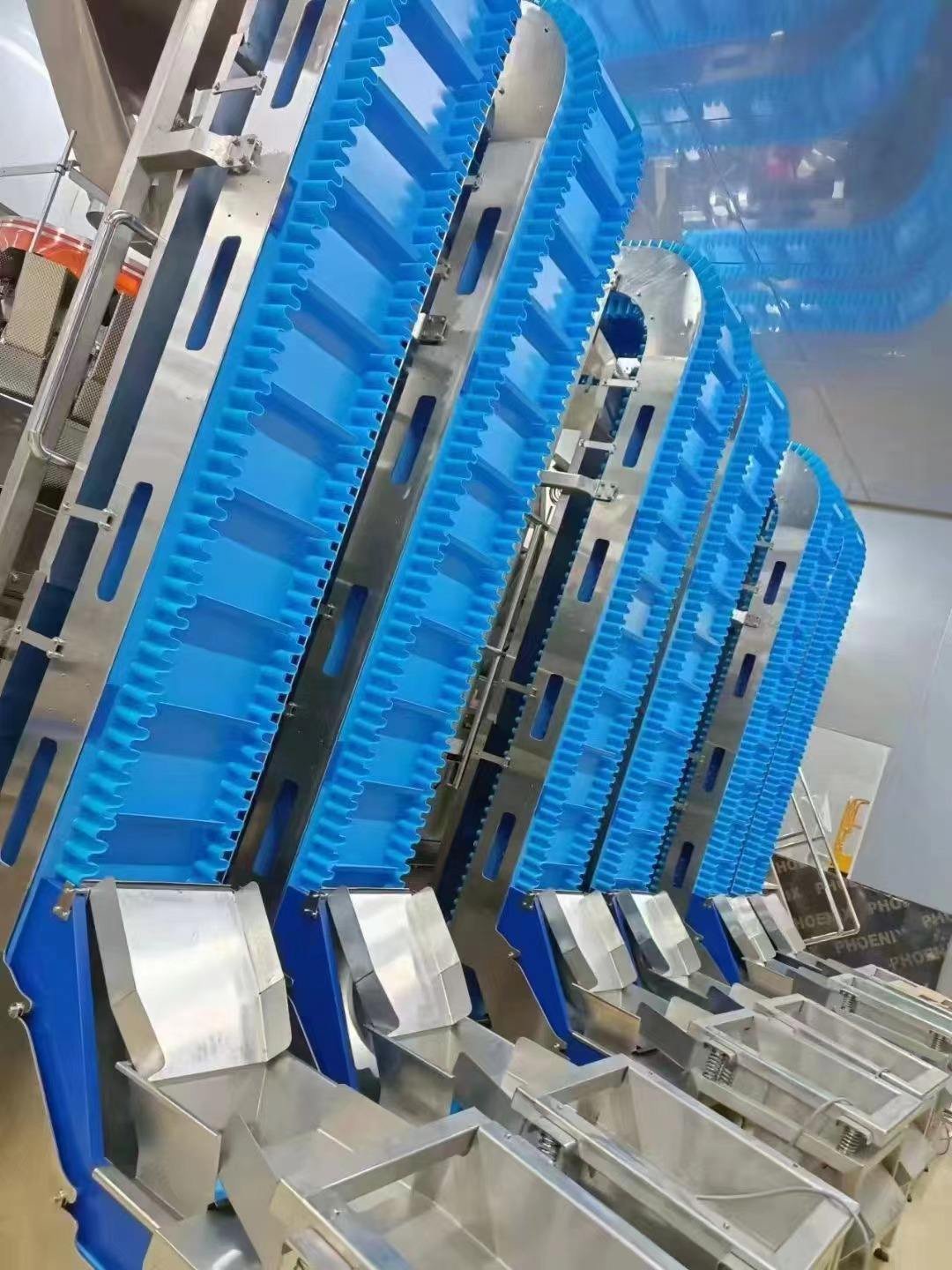

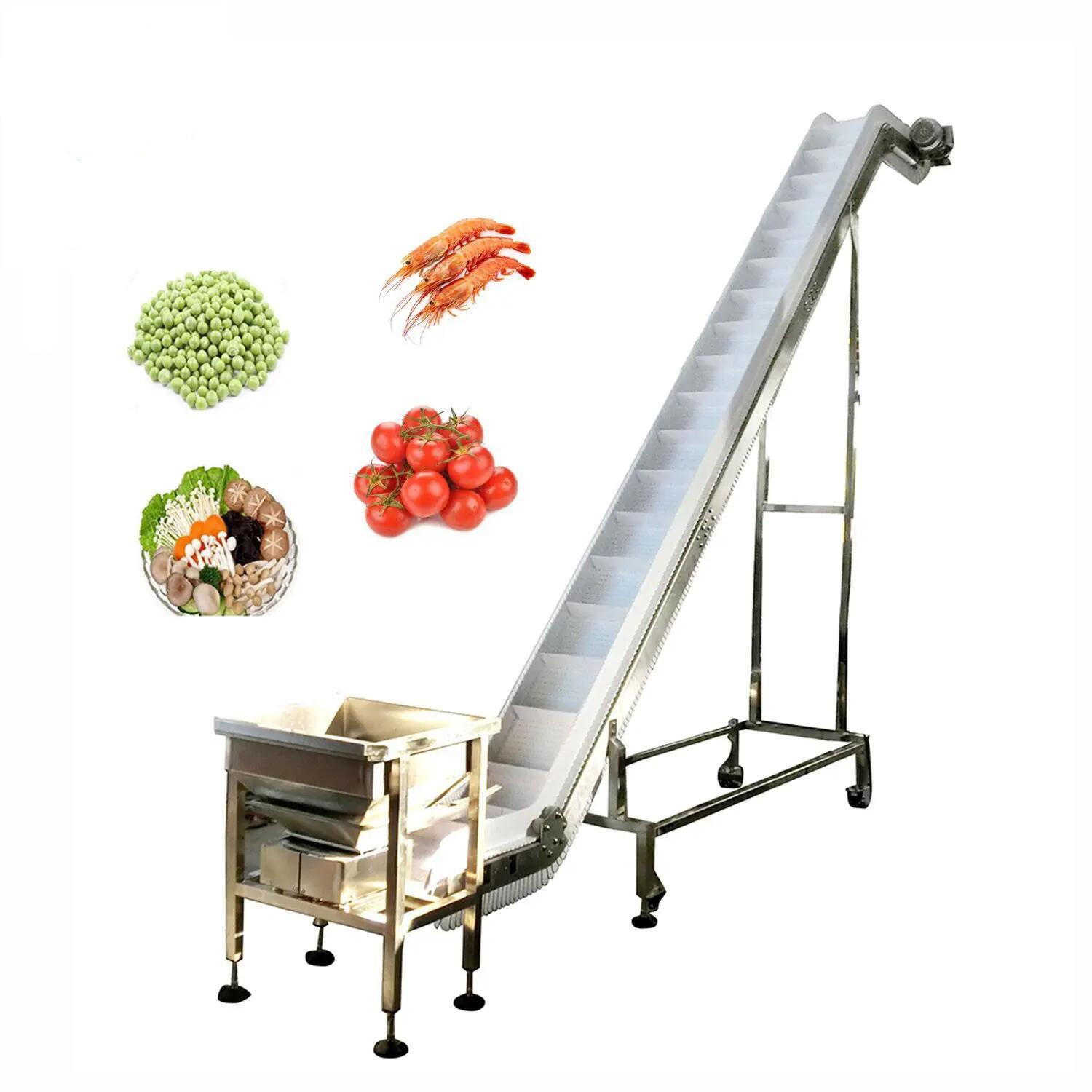

| Inclination | Flat, inclined up to 30°, declined |
| Frame | MS powder-coated / SS 304 / SS 316 |
| Drive | Head drum drive, gearbox + motor |
Flow Chart
Material Loading (manual/auto) → Drive Drum → Continuous Belt Motion → Intermediate Transfer Points (optional) → Head Pulley Discharge
Line Features & Advantages
- Gentle product handling — ideal for fragile items like biscuits, snacks, and produce
- Multiple belt materials for food-grade, chemical-resistant, and high-temperature use
- VFD-controlled drive allows precise speed matching to production line requirements

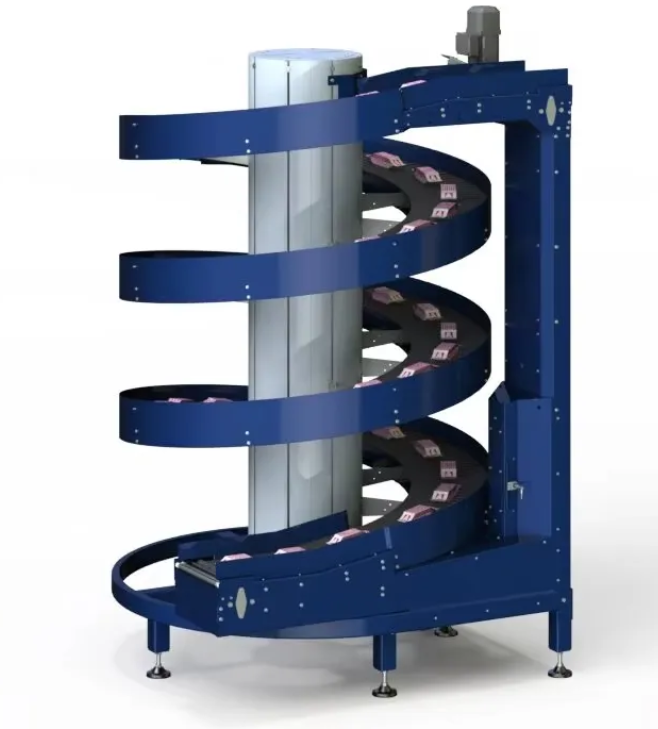

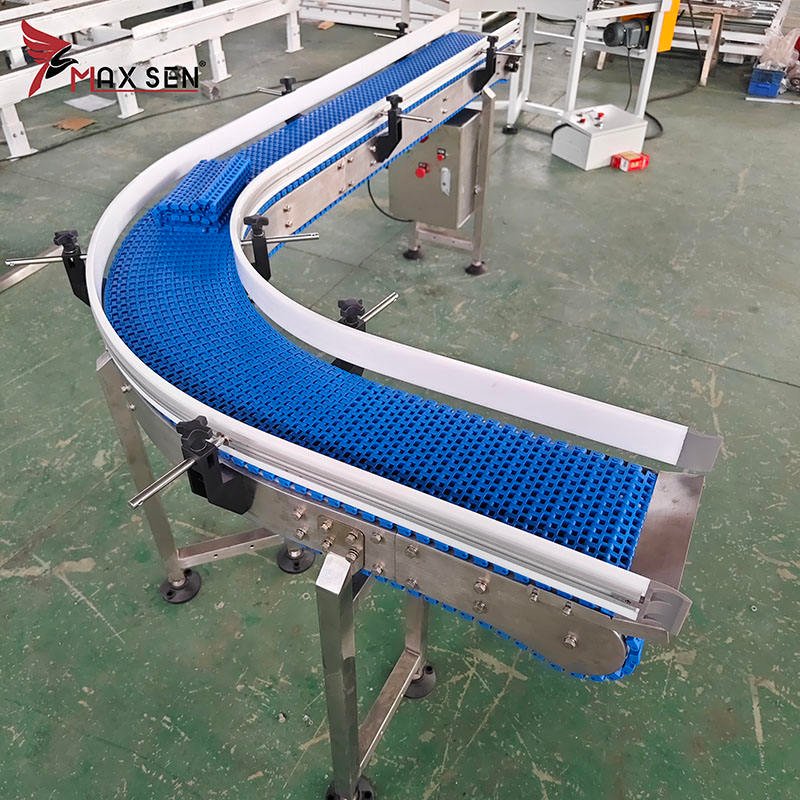

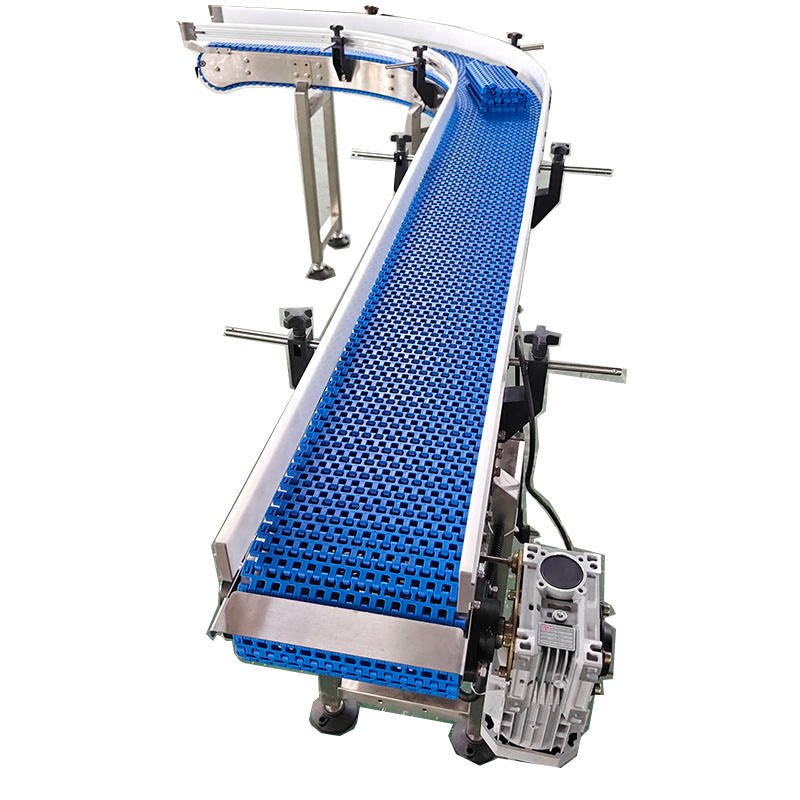

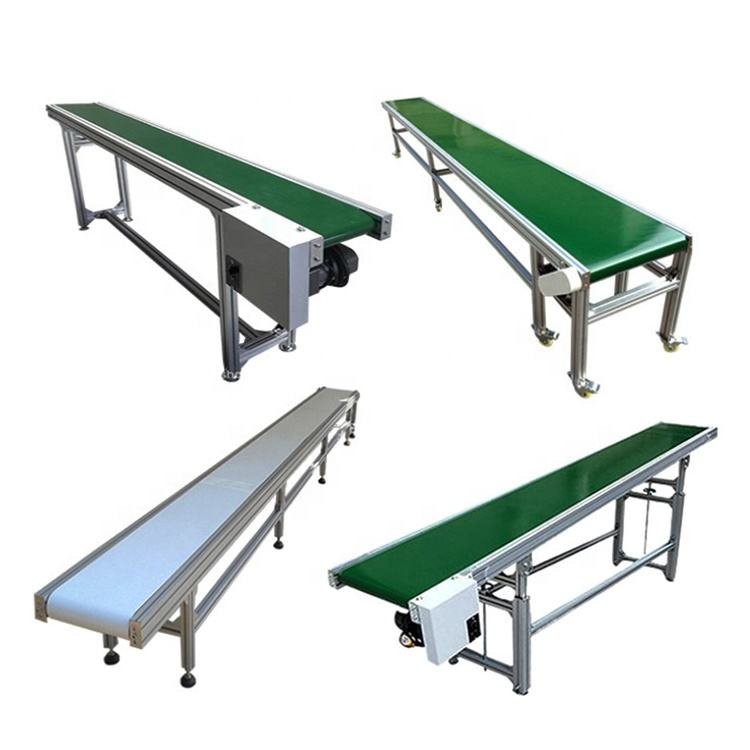

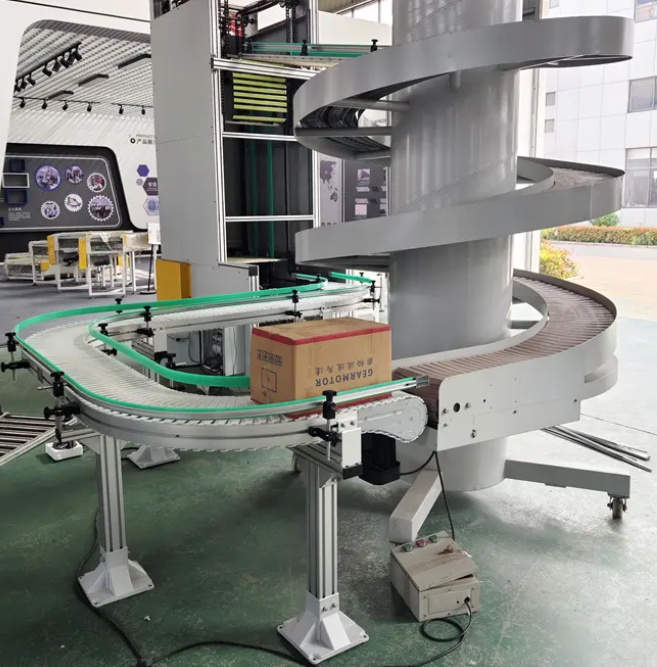

- Flat, inclined, Z-type, and curved configurations for any plant layout
- Integral product guides, cleats, and side walls for controlled material flow
- Easy belt tensioning and tracking adjustment with minimal maintenance
Frequently Asked Questions
Q: What belt type should I choose for food processing?
A: PU (polyurethane) belts are most common for food processing — they are food-safe, easy to clean, and resistant to oils and mild chemicals. SS mesh belts are used for cooling, washing, or high-temperature applications like ovens.
Q: Can it integrate with my existing packaging line?
A: Yes, belt conveyors can be fully integrated with filling machines, VFFS systems, checkweighers, labellers, and palletisers with appropriate speed matching and control.
Q: What is the production capacity of the Belt Conveyor?
A: The Belt Conveyor is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Belt Conveyor?
A: Power requirements vary based on the specific model and capacity selected. Our Belt Conveyor models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
