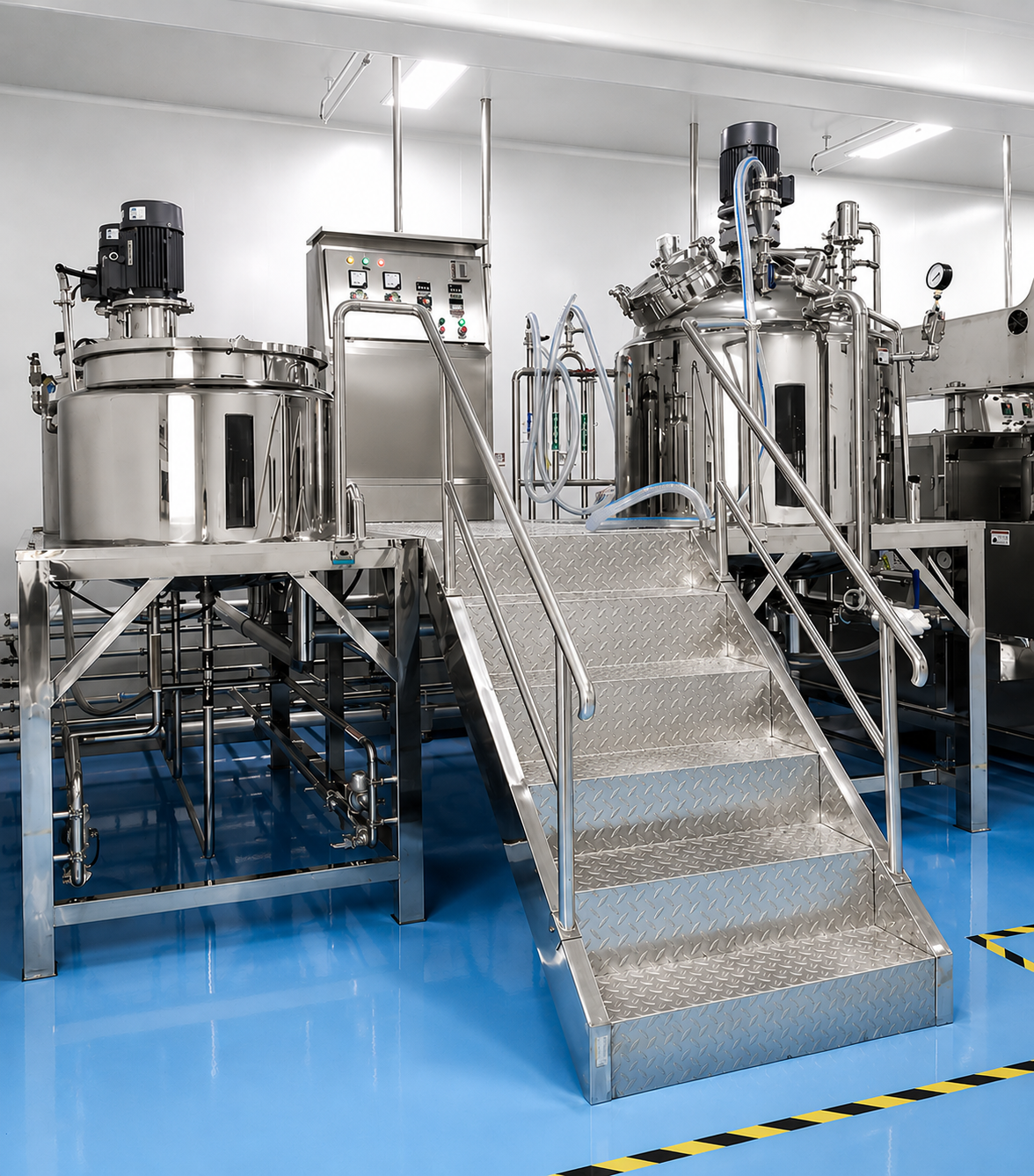

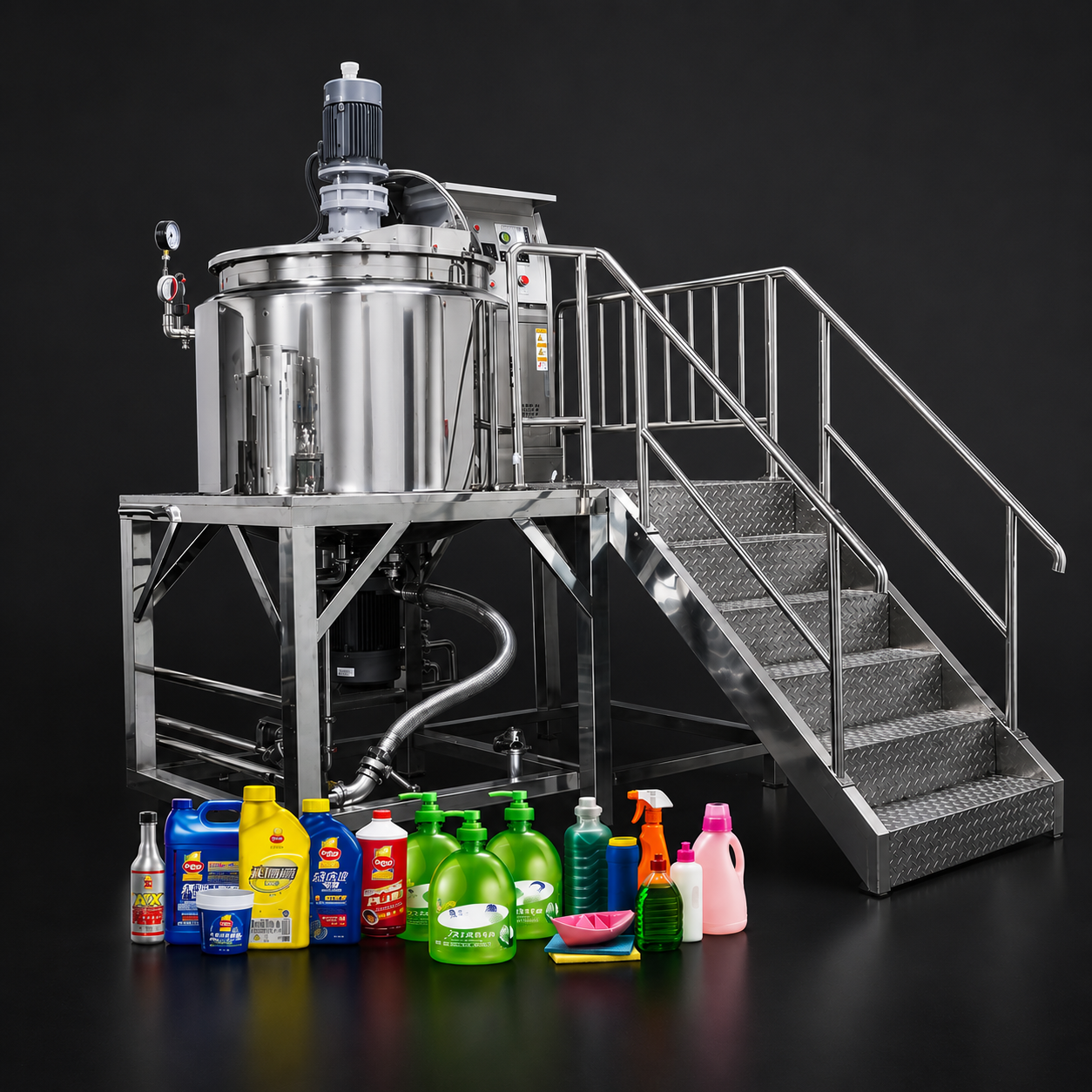

1 / 6Liquid Processing Plant
Food & Nutraceutical PlantsProduct Introduction
Our Liquid Processing Plant is a complete solution for manufacturing, homogenising, pasteurising, and packaging liquid products including sauces, syrups, beverages, dairy liquids, edible oils, and liquid nutraceuticals. The integrated tank farm, mixing, heat treatment, and liquid filling line delivers GMP-grade liquid products at industrial scale.
What This Machine Does
This industrial mixing/blending machine homogeneously combines dry powders, granules, or pastes to achieve uniform distribution. It's essential for consistent product quality in batch manufacturing.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Capacity | 500 L/hr – 50,000 L/hr |

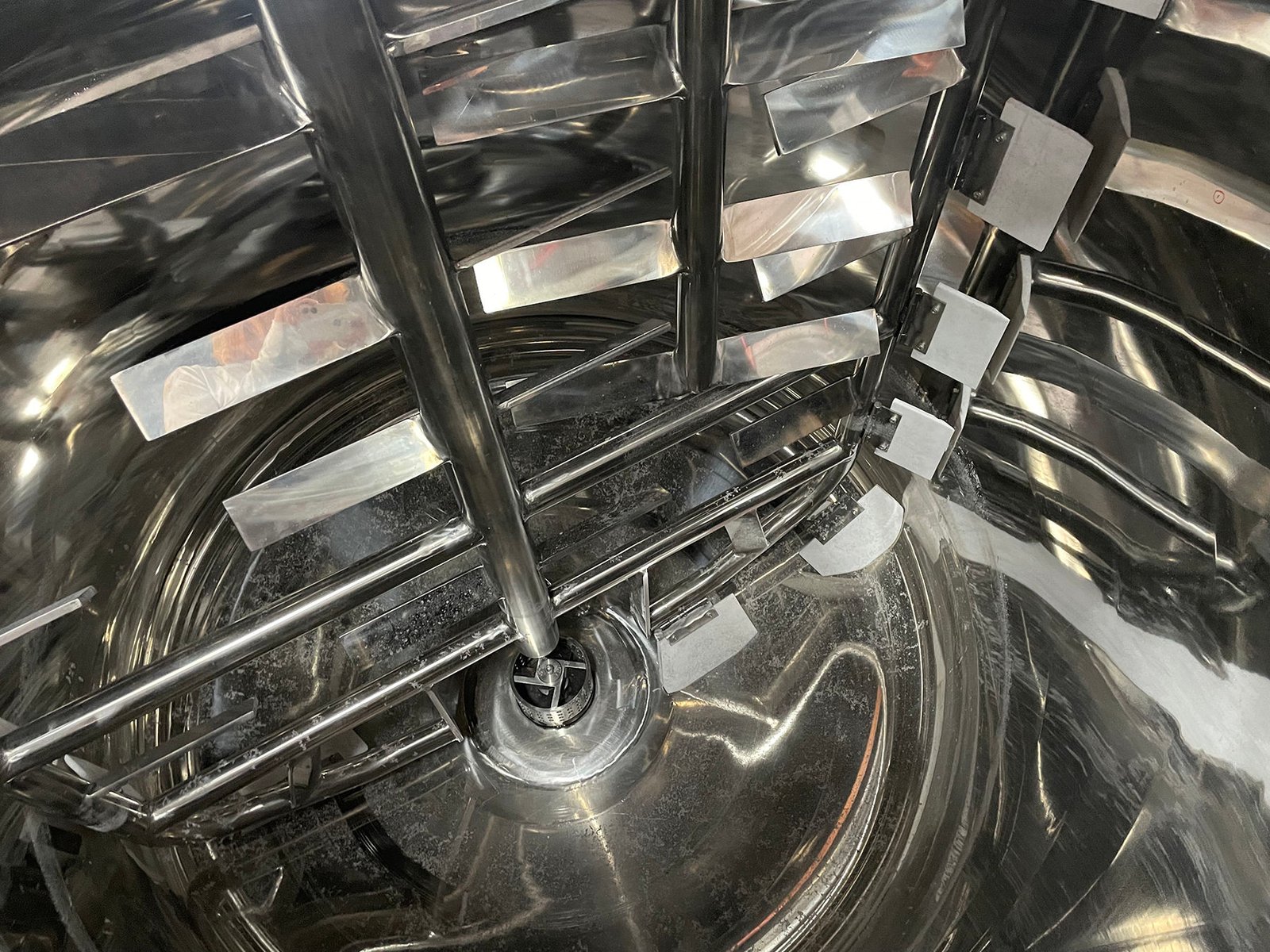

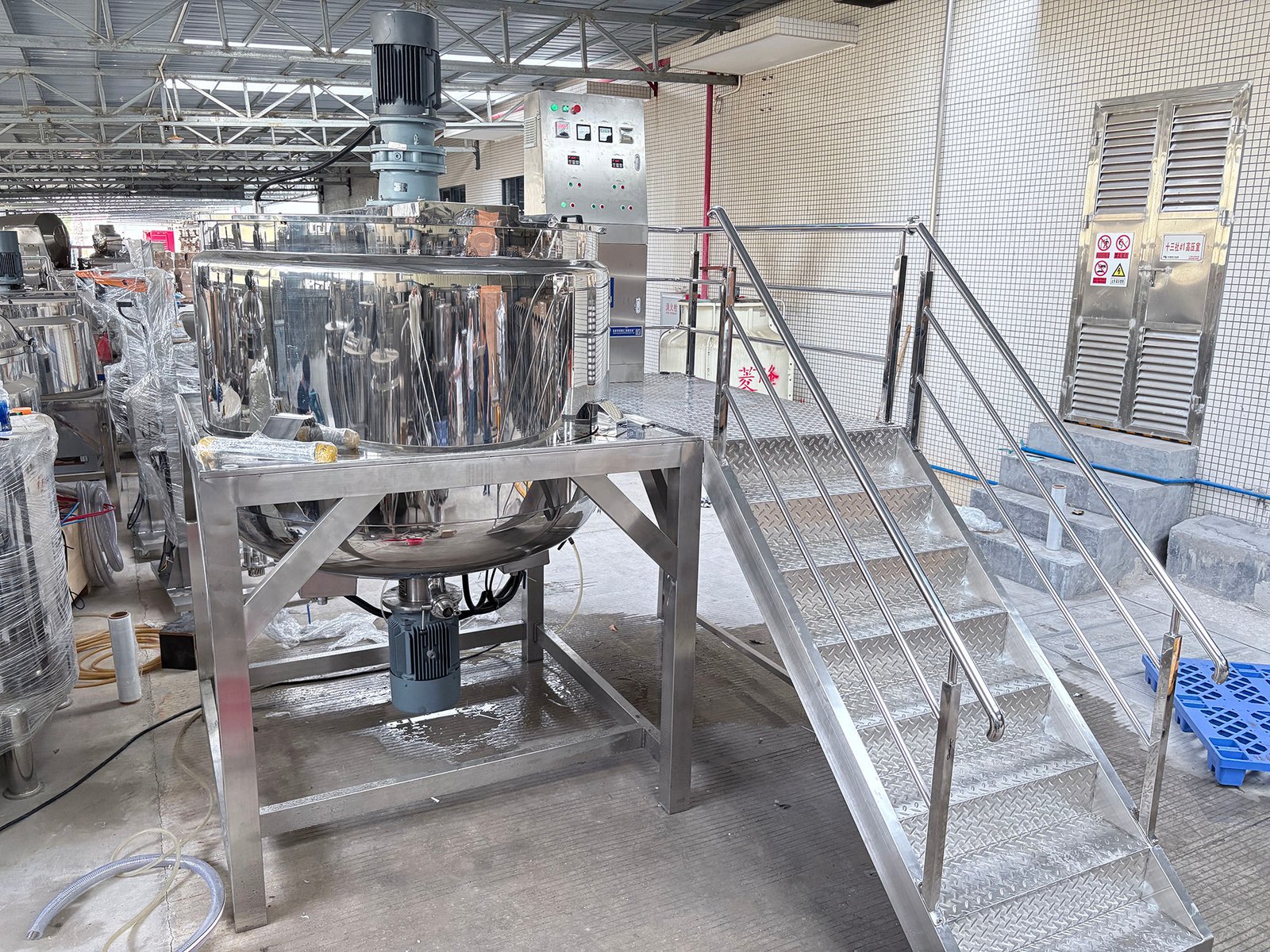

| Tanks | SS 316L jacketed mix tanks with agitator |
| Heat Treatment | HTST pasteuriser / plate heat exchanger |

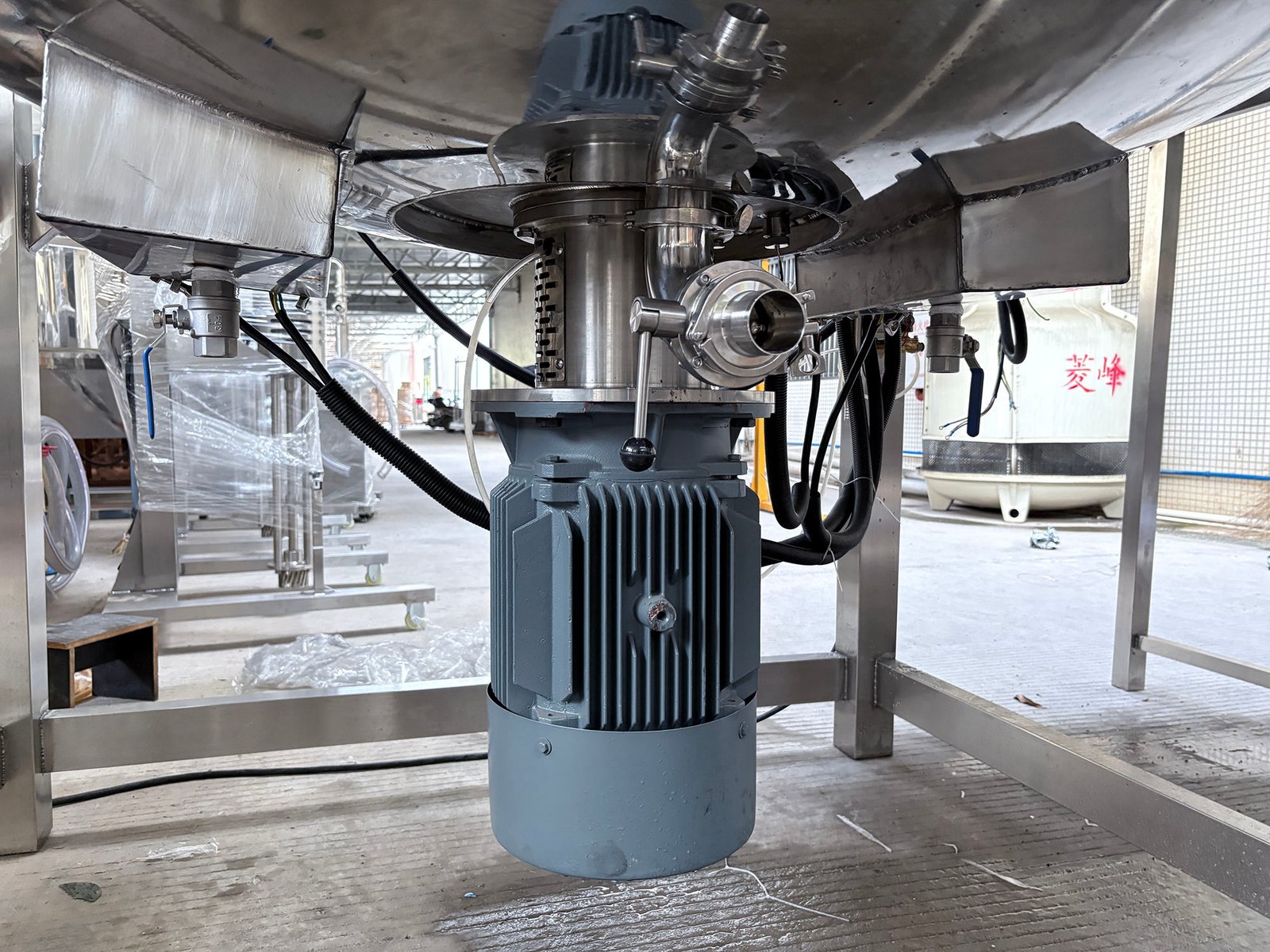

| Homogeniser | High-pressure homogeniser (opt.) |
| Filling | Piston filler / Flowmeter filler (pouch/bottle/drum) |
| CIP | Automated CIP system |
| Compliance | GMP / FSSAI / ISO 22000 / FDA |

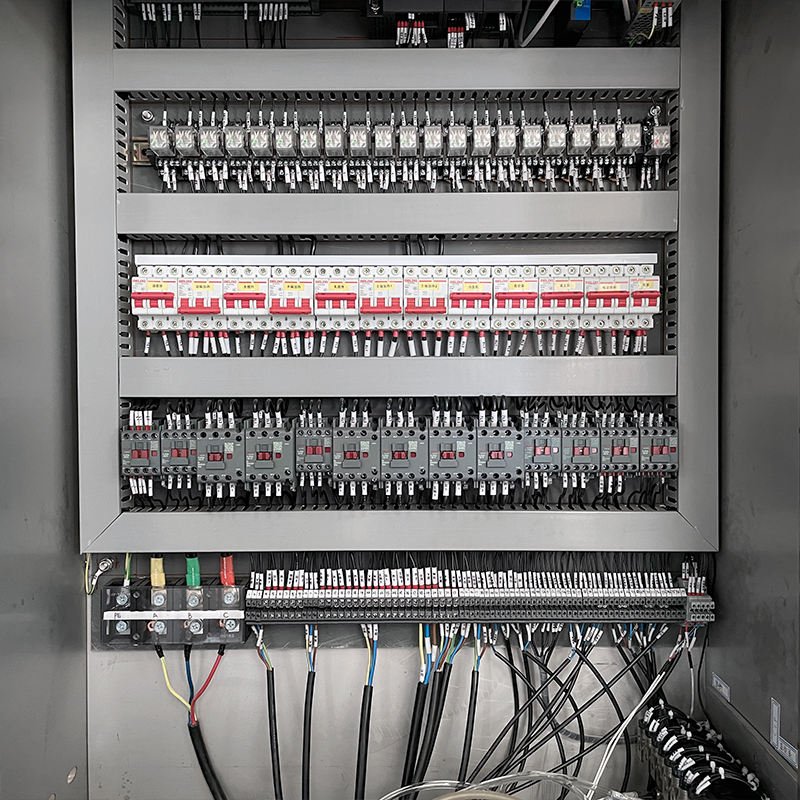

| Control | PLC + SCADA with recipe management |
Flow Chart
Raw Liquid Intake → Pre-mix Tank → High Shear Mixer / Homogeniser → Pasteuriser (HTST) → Cooling → Buffer Tank → Piston Filler → Seal → Labelling → Carton → Palletise
Line Features & Advantages
- Integrated tank farm with CIP for fast product changeover and cross-contamination control
- HTST pasteurisation ensures microbiological safety and extended shelf life
- High-pressure homogeniser option for emulsions, dairy, and suspension products
- PLC-SCADA recipe management for multi-product liquid manufacturing
- Automated CIP system reduces cleaning time and water/chemical consumption
- Filling line handles pouches, bottles, drums, and IBC totes with one system
Frequently Asked Questions
Q: Can the plant handle both viscous sauces and thin beverages?
A: Yes, with adjustable pump selection (centrifugal for thin liquids, positive displacement for viscous products) and interchangeable filling nozzles, the same platform handles a wide viscosity range.
Q: How is cross-contamination prevented between different products?
A: The automated CIP system performs validated cleaning cycles between product changeovers, and the SCADA system logs each CIP cycle with proof of effectiveness for food safety compliance.
Q: What is the production capacity of the Liquid Processing Plant?
A: The Liquid Processing Plant is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Liquid Processing Plant?
A: Power requirements vary based on the specific model and capacity selected. Our Liquid Processing Plant models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
