1 / 5Continuous Band Sealer
Sealing & Coding MachinesProduct Introduction
Our Continuous Band Sealer delivers fast, consistent heat sealing of poly bags, laminates, and pouches on a continuous conveyor basis. Ideal for sealing HDPE, LDPE, PP, and laminated bags in food, chemical, and packaging operations, it ensures airtight seals at high throughput speeds with optional date coding.
What This Machine Does
This sealing and coding machine heat-seals pouches and bags while simultaneously printing batch numbers, expiry dates, and MRP on the packaging for regulatory compliance and traceability.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Seal Width | 6 mm – 12 mm |
| Conveyor Speed | 0 – 12 m/min (adjustable) |
| Temperature Range | 0 – 300°C (PID controlled) |
| Film Compatibility | HDPE / LDPE / PP / Laminated films |
| Band Width | 10 mm / 15 mm |
| Printing Option | Hot ink roller coder (optional) |
| Power | 220V / 50Hz, 600W – 1200W |

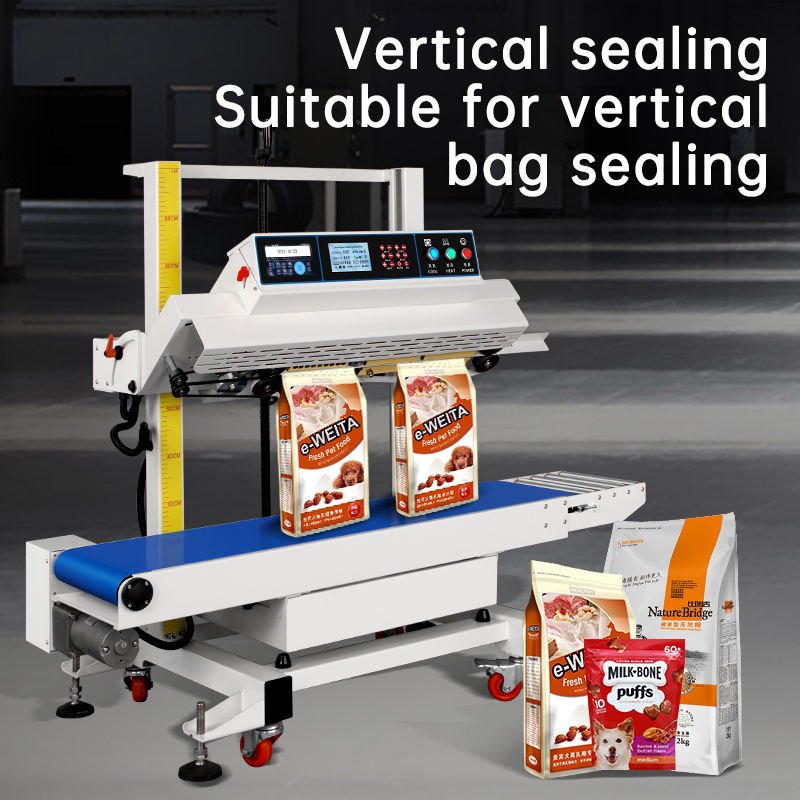

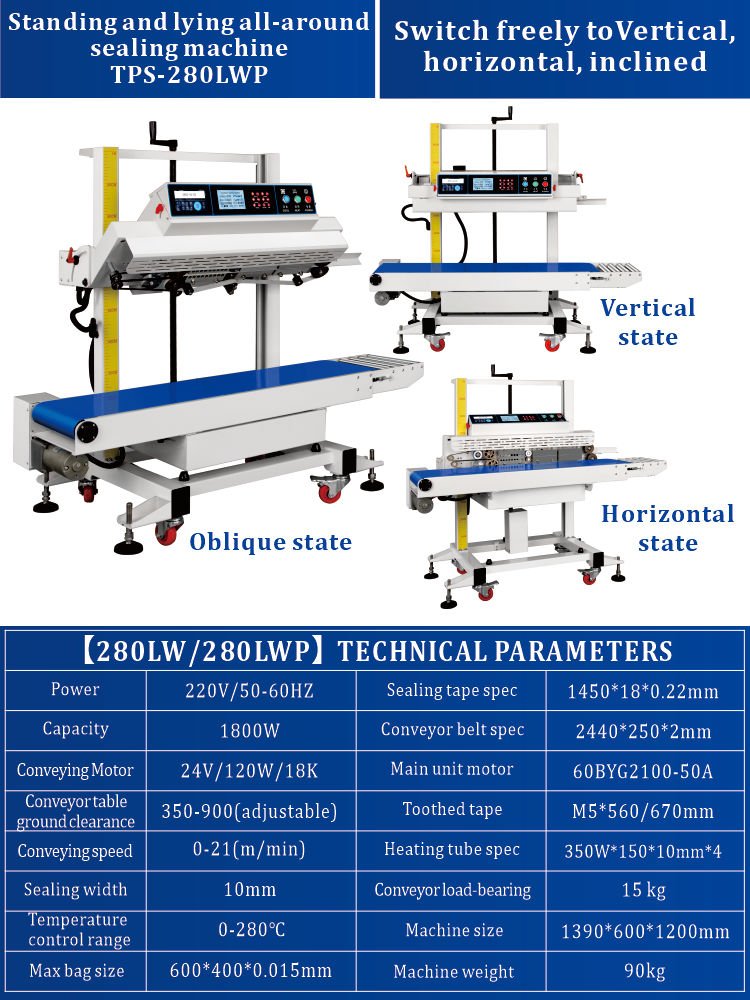

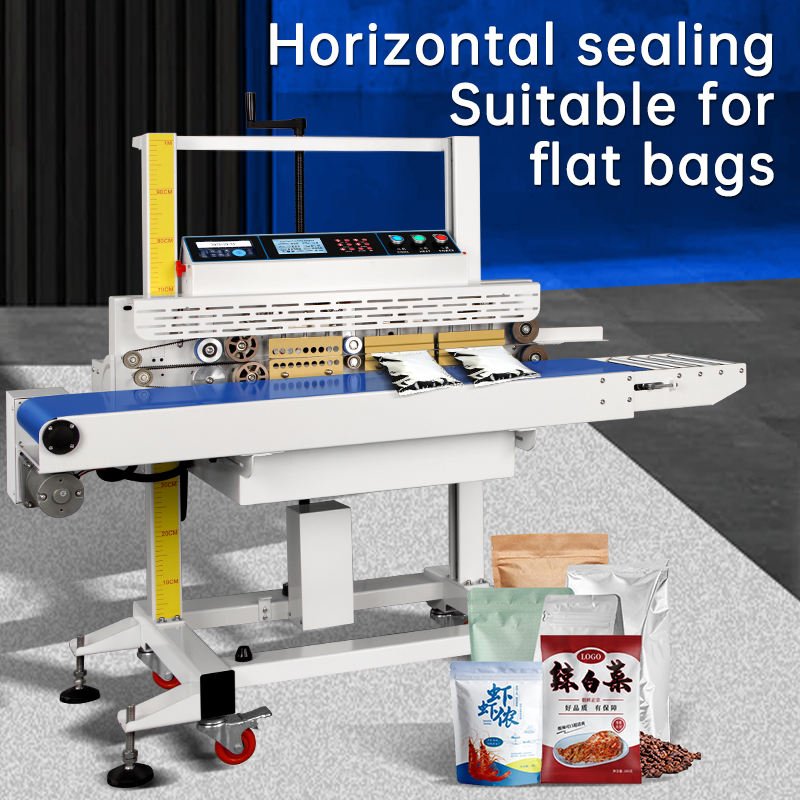

| Orientation | Horizontal / Vertical / Inclined |
Flow Chart
Bag Mouth Insertion → Conveyor Infeed → Heating Band Sealing → Cooling Band → Sealed Bag Output
Line Features & Advantages
- Continuous sealing at up to 12 m/min for high-volume operations

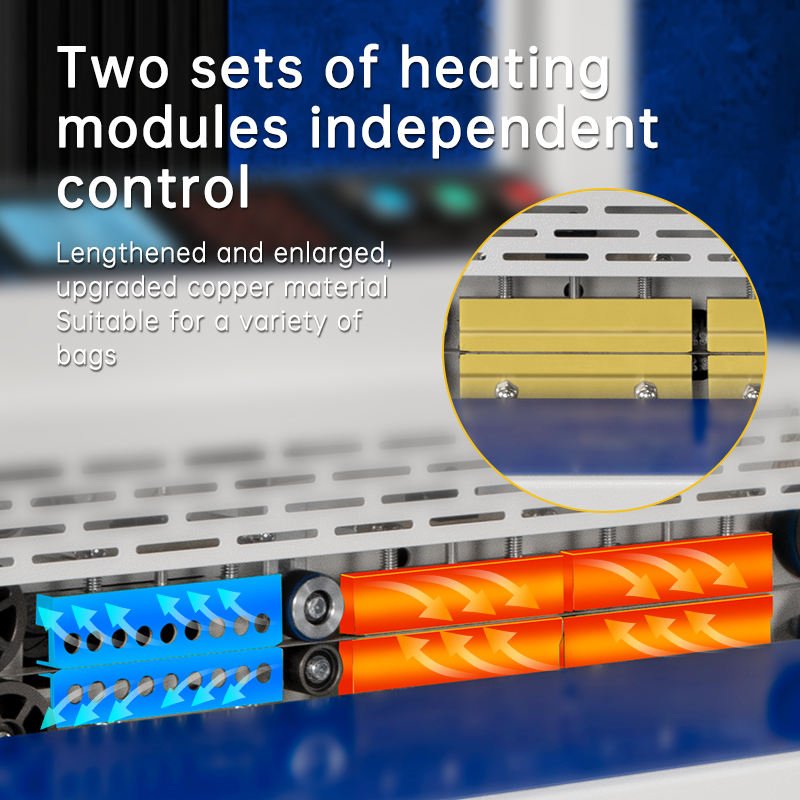

- PID temperature control ensures consistent seal quality every time
- Available in horizontal, vertical, and inclined configurations
- Optional hot ink roller coder for batch number and date printing
- Suitable for HDPE, LDPE, PP, and laminated film bags
- Compact and durable design suits a wide range of industrial environments
Frequently Asked Questions
Q: Can it seal aluminium foil laminated bags?
A: Yes, with appropriate temperature setting and band pressure adjustment, it seals aluminium foil laminates. Thicker laminates may require a higher temperature setting.
Q: Can it print batch codes during sealing?
A: Yes, with the optional hot ink roller coding attachment, it prints batch numbers, MFG/EXP dates, and MRP simultaneously during the sealing process.
Q: What is the production capacity of the Continuous Band Sealer?
A: The Continuous Band Sealer is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Continuous Band Sealer?
A: Power requirements vary based on the specific model and capacity selected. Our Continuous Band Sealer models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
