1 / 9Liquid Mixer Agitator
Mixing & Blending EquipmentProduct Introduction

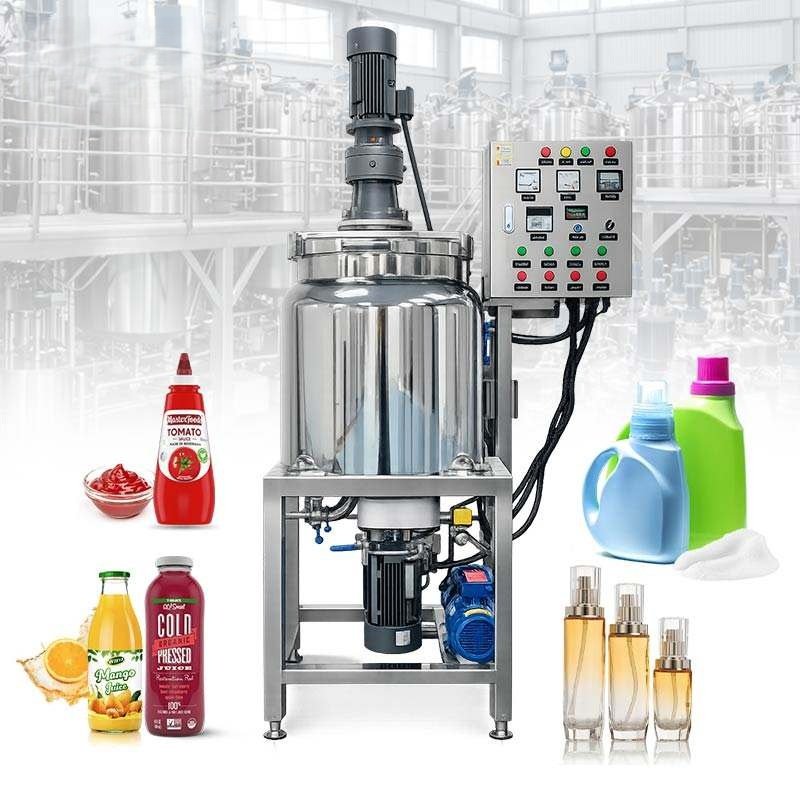

Our Liquid Mixer Agitator is a versatile tank-mounted mixing solution for blending, homogenising, and stirring liquid products at both high and low speeds. Available in top-entry, side-entry, and bottom-entry configurations, it is widely used in food & beverage, pharmaceutical, chemical, and cosmetic industries for liquid formulations, syrups, slurries, and emulsions.
What This Machine Does
This industrial mixing/blending machine homogeneously combines dry powders, granules, or pastes to achieve uniform distribution. It's essential for consistent product quality in batch manufacturing.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Tank Capacity | 100 L – 50,000 L |
| Agitator Type | Propeller / Turbine / Anchor / Helical |
| Speed Range | 20 – 1450 RPM (high & low speed options) |
| Entry Type | Top / Side / Bottom entry |
| Seal Type | Mechanical seal / Lip seal / Stuffing box |
| Material | SS 304 / SS 316L |
| Drive | Gearbox + VFD motor |
Flow Chart
Tank Filling → Motor Start → Impeller Rotation → Uniform Liquid Blend / Emulsification → Product Ready → Discharge Pump
Line Features & Advantages
- Handles both high-speed and low-speed liquid mixing from one unit (VFD)

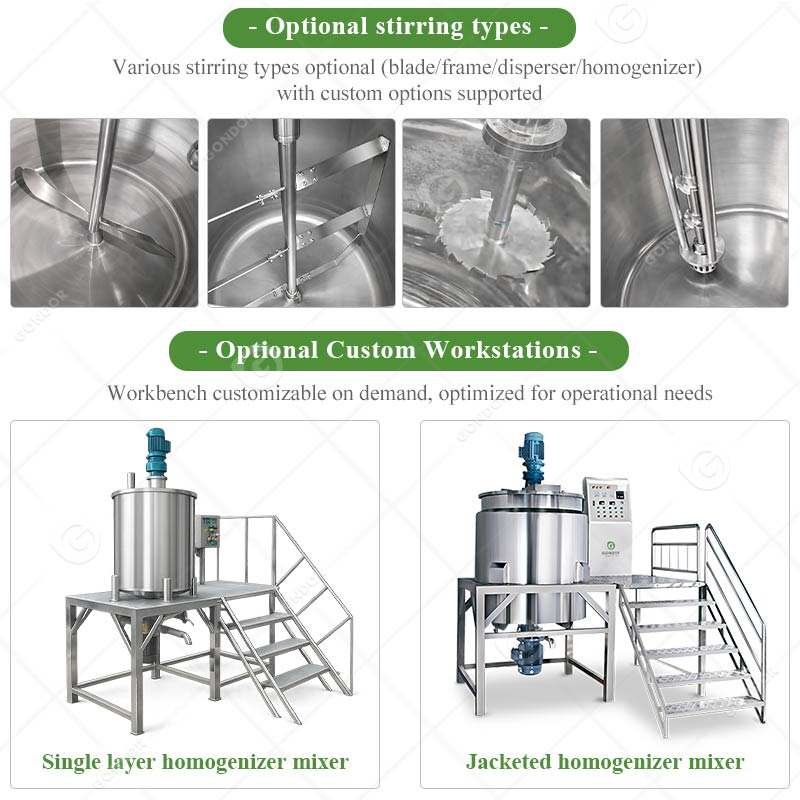

- Multiple impeller types — propeller, turbine, anchor, and helical for different viscosities
- Top-entry, side-entry, and bottom-entry configurations to suit tank design
- Mechanical seal prevents product contamination and leak-free operation

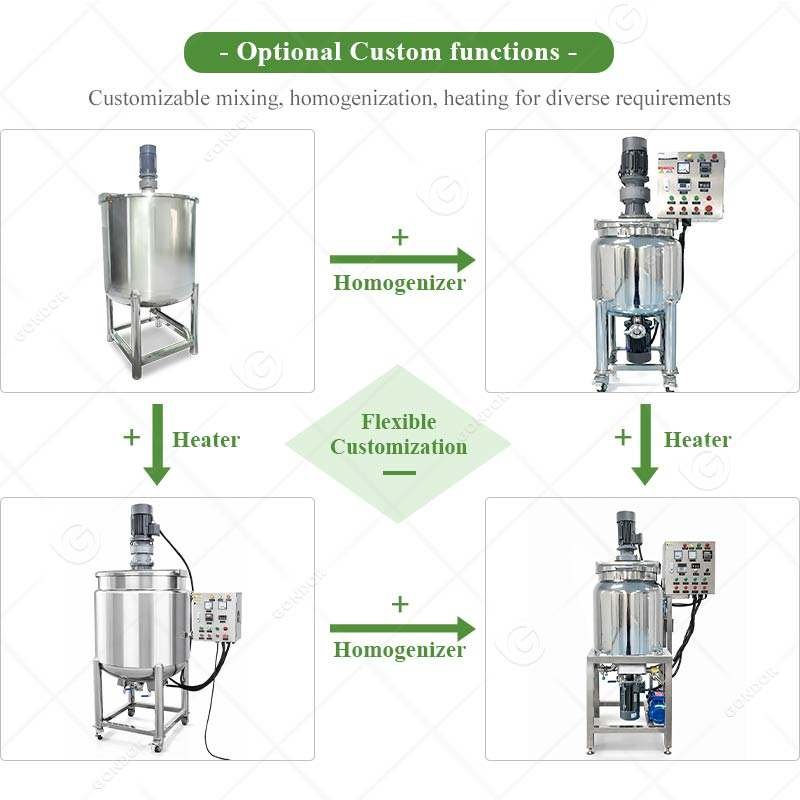

- Jacketed shaft and tank option for temperature-controlled mixing
- Suitable for thin liquids, viscous products, slurries, and emulsions
Frequently Asked Questions
Q: What is the difference between high-speed and low-speed agitation?
A: High-speed agitation (turbine/propeller) is used for low-viscosity liquids and emulsification. Low-speed agitation (anchor/helical) is used for high-viscosity products like syrups, creams, and pastes.
Q: Can it handle corrosive liquids?
A: Yes, with SS 316L construction and appropriate mechanical seals, our agitators handle mildly corrosive food, pharmaceutical, and chemical liquids. For highly corrosive applications, we offer HDPE or PVDF-lined options.
Q: What is the production capacity of the Liquid Mixer Agitator?
A: The Liquid Mixer Agitator is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Liquid Mixer Agitator?
A: Power requirements vary based on the specific model and capacity selected. Our Liquid Mixer Agitator models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
