1 / 64 Head Linear Weigher with pneumatic
Weighing & Bagging MachineProduct Introduction

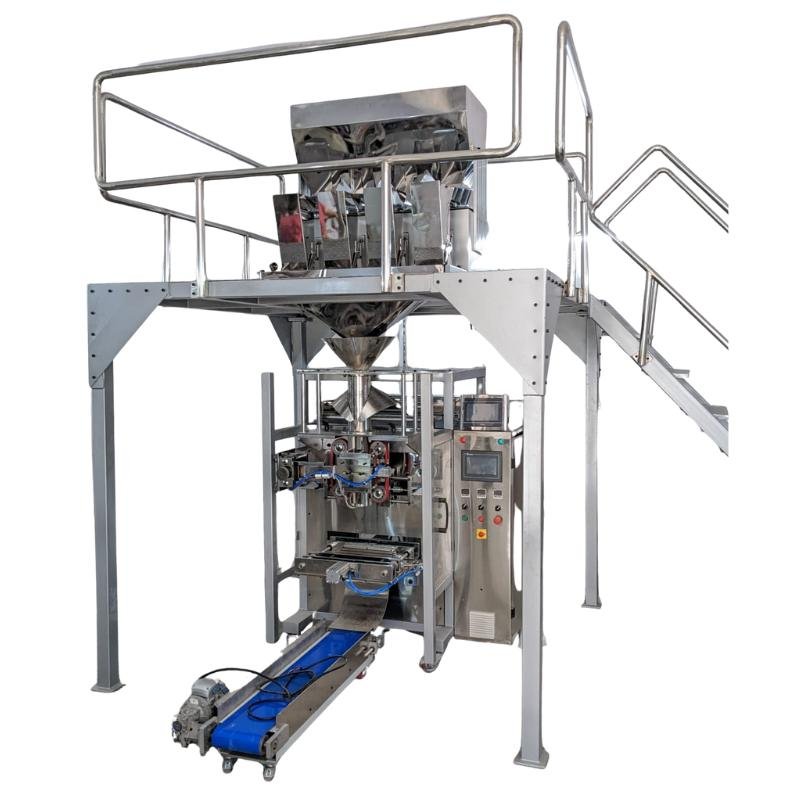

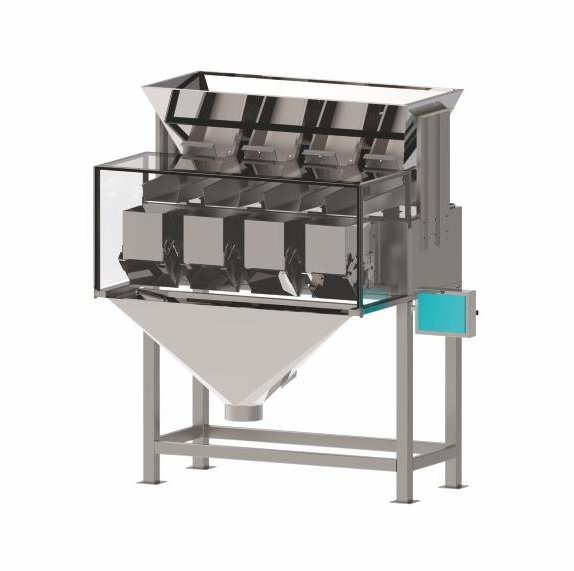

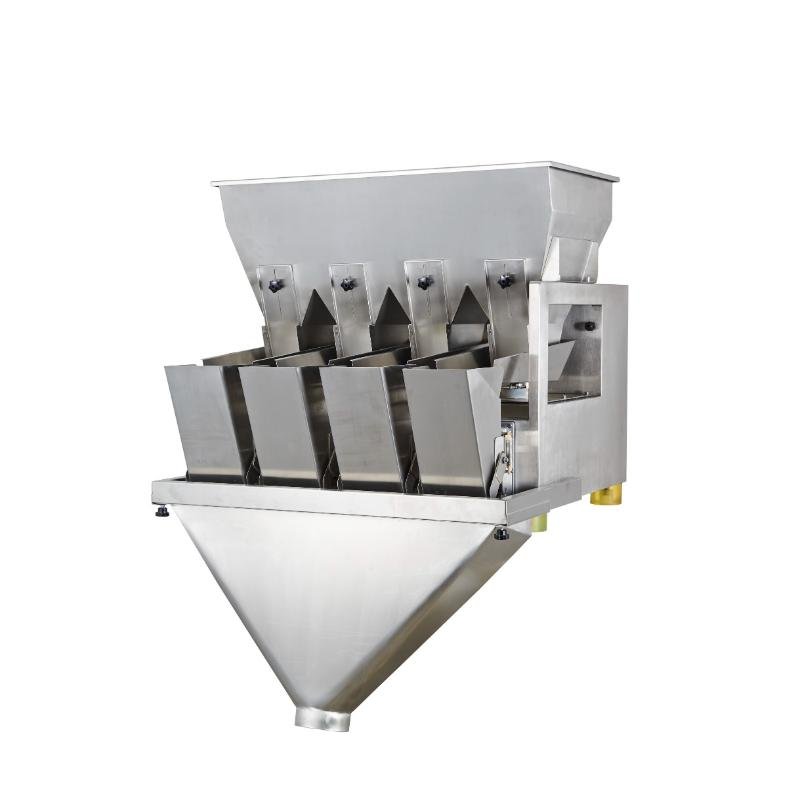

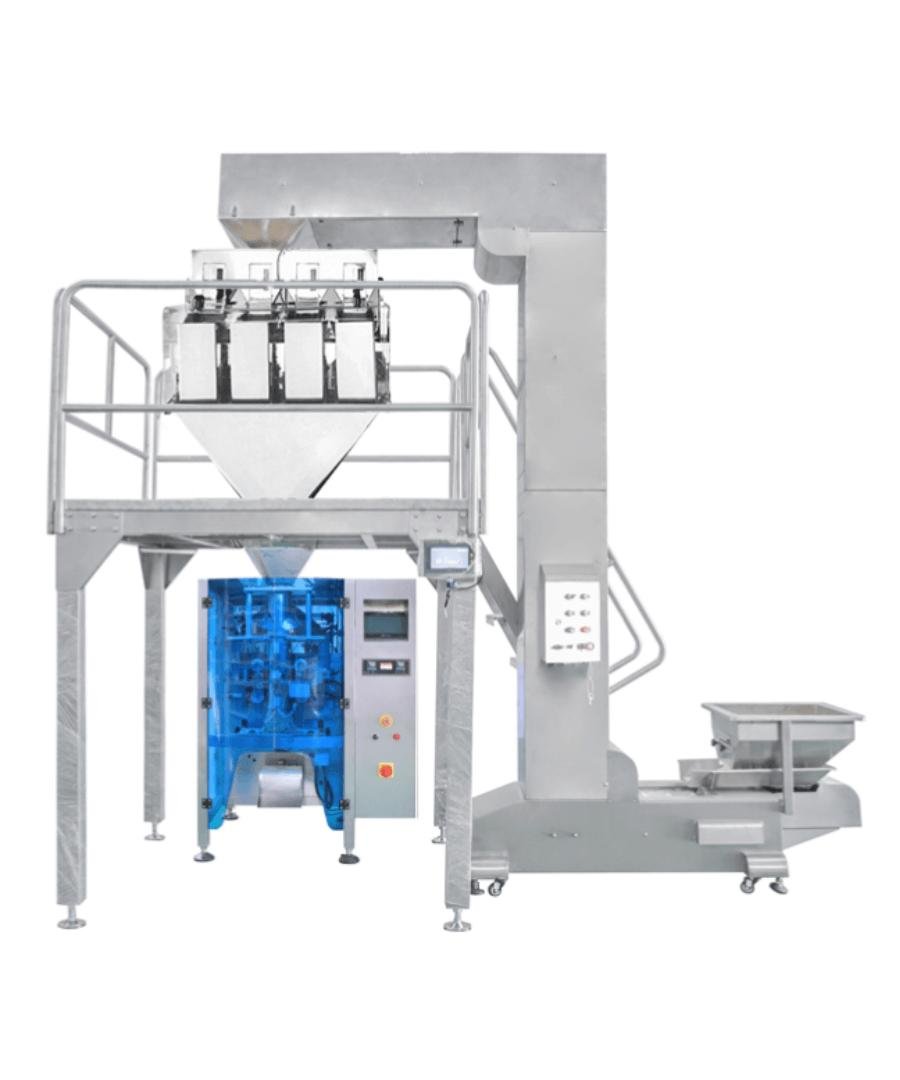

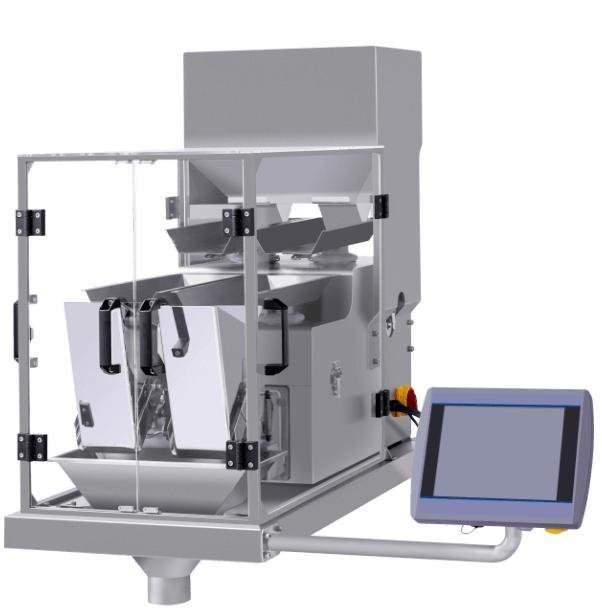

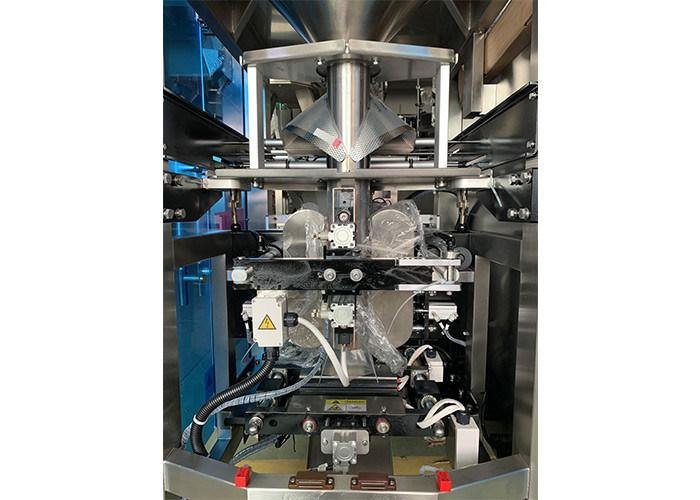

Our 4 Head Linear Weigher with Pneumatic drive is designed for high-speed, accurate weighing and bagging of granular, powder, and free-flowing products. Equipped with pneumatic actuators for precise portion control, it is widely used in food, chemical, and agricultural packaging lines.
What This Machine Does
This machine automatically weighs and dispenses precise quantities of dry, granular, or free-flowing products into bags, pouches, or containers. The 4 pneumatic heads work simultaneously to calculate optimal weight combinations, ensuring speed and accuracy in every batch.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Weighing Heads | 4 Heads |
| Drive Type | Pneumatic |
| Weighing Range | 50g – 5000g |
| Accuracy | ±0.5g |
| Speed | Up to 30 packs/min |
| Material Contact Parts | SS 304 / SS 316 |
| Power Supply | 220V / 50Hz |
Flow Chart
Product Feeding → Hopper Vibration → Linear Weigh Trays → Pneumatic Gate Control → Target Weight Achieved → Discharge to Bagger
Line Features & Advantages
- High weighing accuracy with pneumatic gate control system
- Easy to clean with quick-release weigh trays
- PLC-based control with touchscreen HMI interface
- Compatible with VFFS and open-mouth bagging machines
- Low maintenance with durable pneumatic actuators
- Stainless steel construction meets food-grade standards
Frequently Asked Questions
Q: Can it handle sticky or wet products?
A: The pneumatic linear weigher is optimized for free-flowing dry products. For sticky or wet materials, a vibratory or belt-fed system is recommended.
Q: What bag types is it compatible with?
A: It is compatible with VFFS (form-fill-seal), open-mouth bags, and pillow bags. Custom configurations are available on request.
Q: What is the production capacity of the 4 Head Linear Weigher with pneumatic?
A: The 4 Head Linear Weigher with pneumatic is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the 4 Head Linear Weigher with pneumatic?
A: Power requirements vary based on the specific model and capacity selected. Our 4 Head Linear Weigher with pneumatic models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
