1 / 8Flow wrap machine

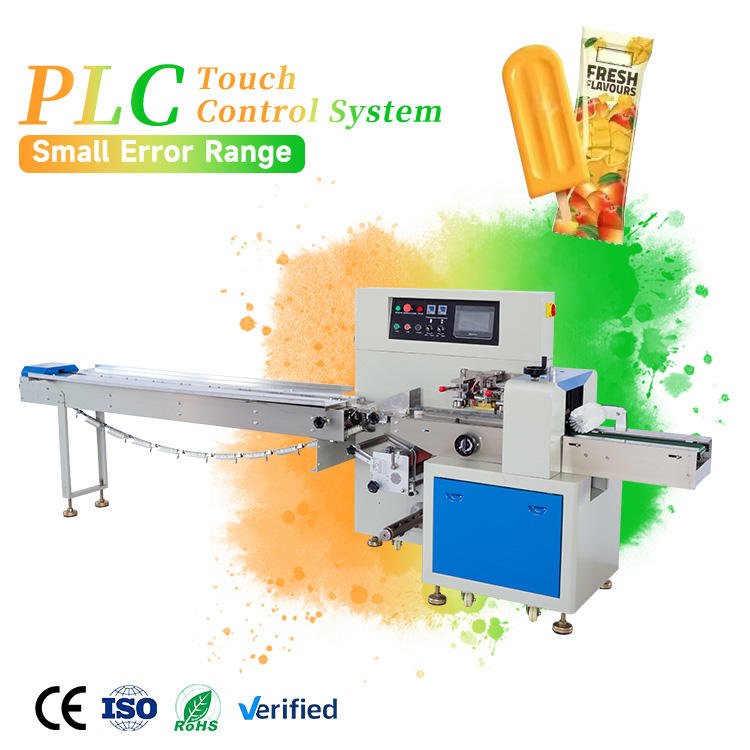

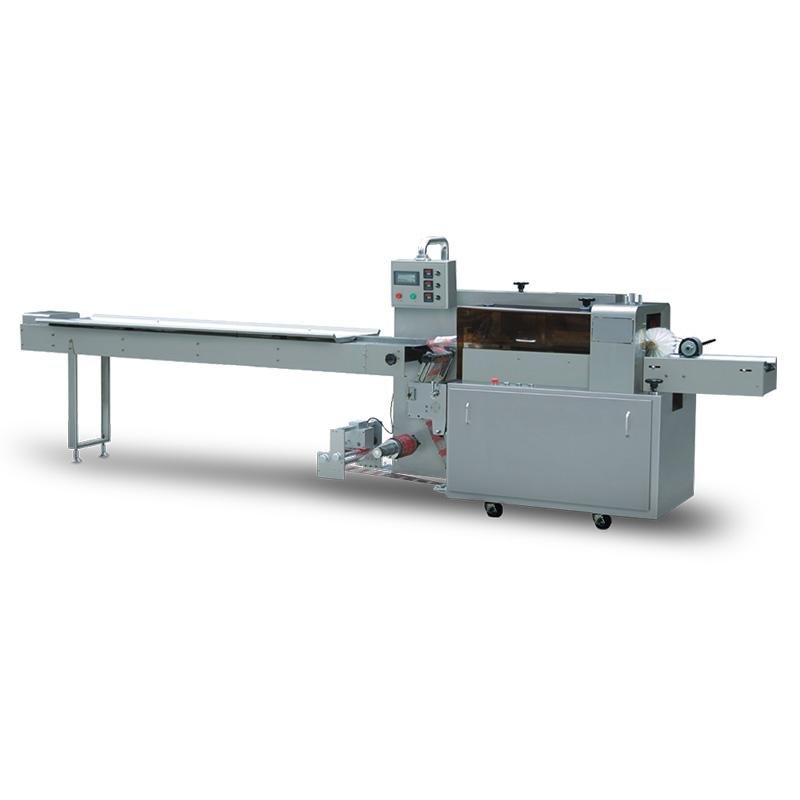

Horizontal Packing MachineProduct Introduction
The Flow Wrap Machine (Horizontal Flow Wrapper) is designed for wrapping solid, rigid, and semi-rigid products in a continuous film wrap. Widely used in bakery, confectionery, biscuit, soap, and medical device packing lines.
What This Machine Does
This horizontal packing machine wraps individual products in film using a flow-wrap technique. Products are conveyed horizontally, wrapped in film, and sealed on three sides for clean, tight packaging.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Pack Type | Horizontal flow wrap (pillow pack) |
| Product Dimensions | Up to 300mm L × 200mm W × 100mm H |
| Speed | Up to 150 packs/min |
| Film Type | OPP / CPP / PE / Laminates |
| Drive | Servo + Stepper |
| Power | 380V / 50Hz, 4kW |
Flow Chart
Product In-feed → Film Unwinding → Film Folding Fin Seal → Rotary Jaw End Seal → Cut → Output Conveyor
Line Features & Advantages
- Horizontal wrapping for solid and rigid products
- Servo-driven end sealing jaw for consistent heat seal
- Compatible with automatic feeding conveyors and robots
- High-speed continuous motion design
- GMP-compliant version available for medical products
Frequently Asked Questions
Q: Can it pack biscuits and chocolates?
A: Yes, with product-specific in-feed guides or robotic pick-and-place, it is ideal for biscuits, chocolate bars, wafers, and similar solid food items.
Q: What is the production capacity of the Flow wrap machine?
A: The Flow wrap machine is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Flow wrap machine?
A: Power requirements vary based on the specific model and capacity selected. Our Flow wrap machine models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
Q: Do you provide installation and operator training for the Flow wrap machine?
A: Yes, Authentic Engineering provides complete on-site installation, commissioning, and hands-on operator training for the Flow wrap machine. Our technical team ensures your operators are fully trained before handover.
