1 / 9Tile Adhesive Full Plant
Chemical & Construction PlantsProduct Introduction

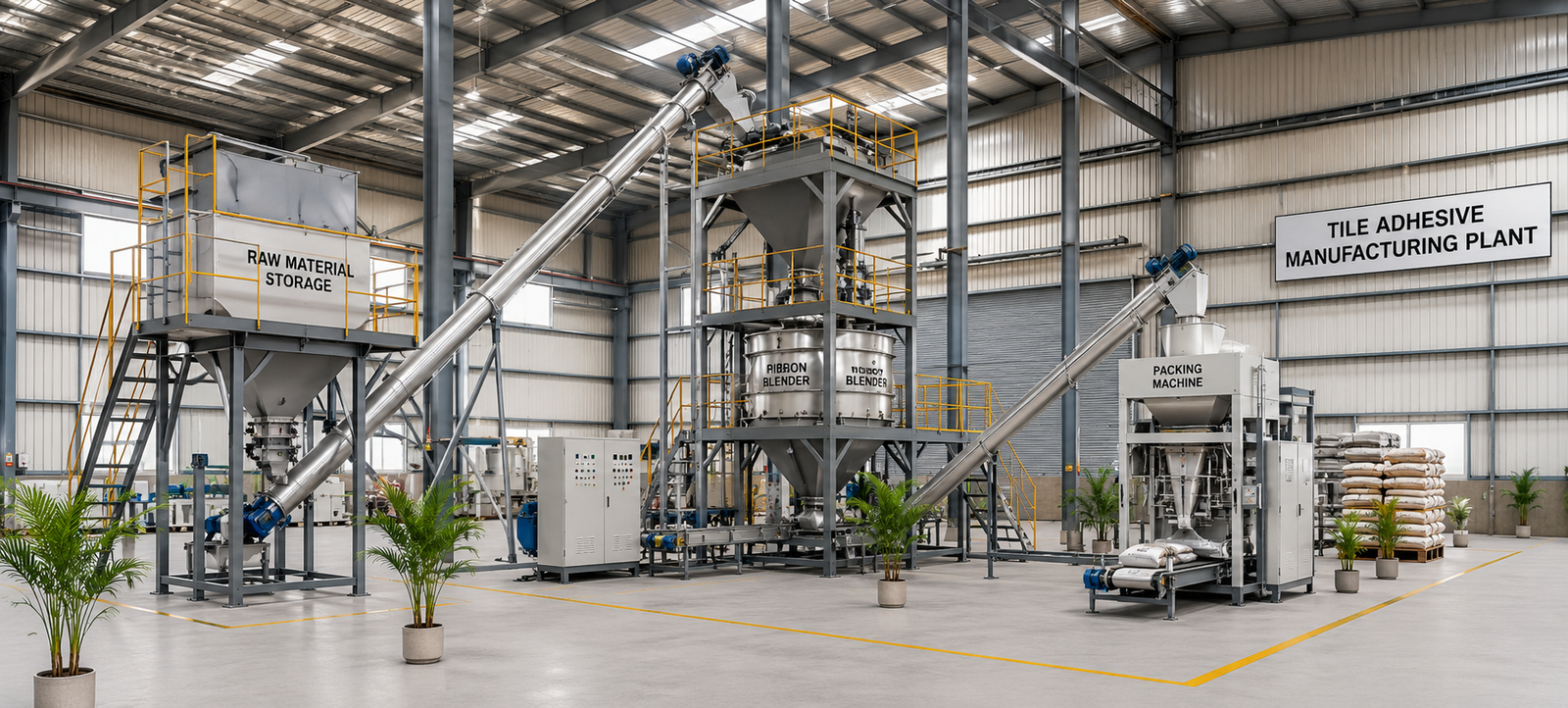

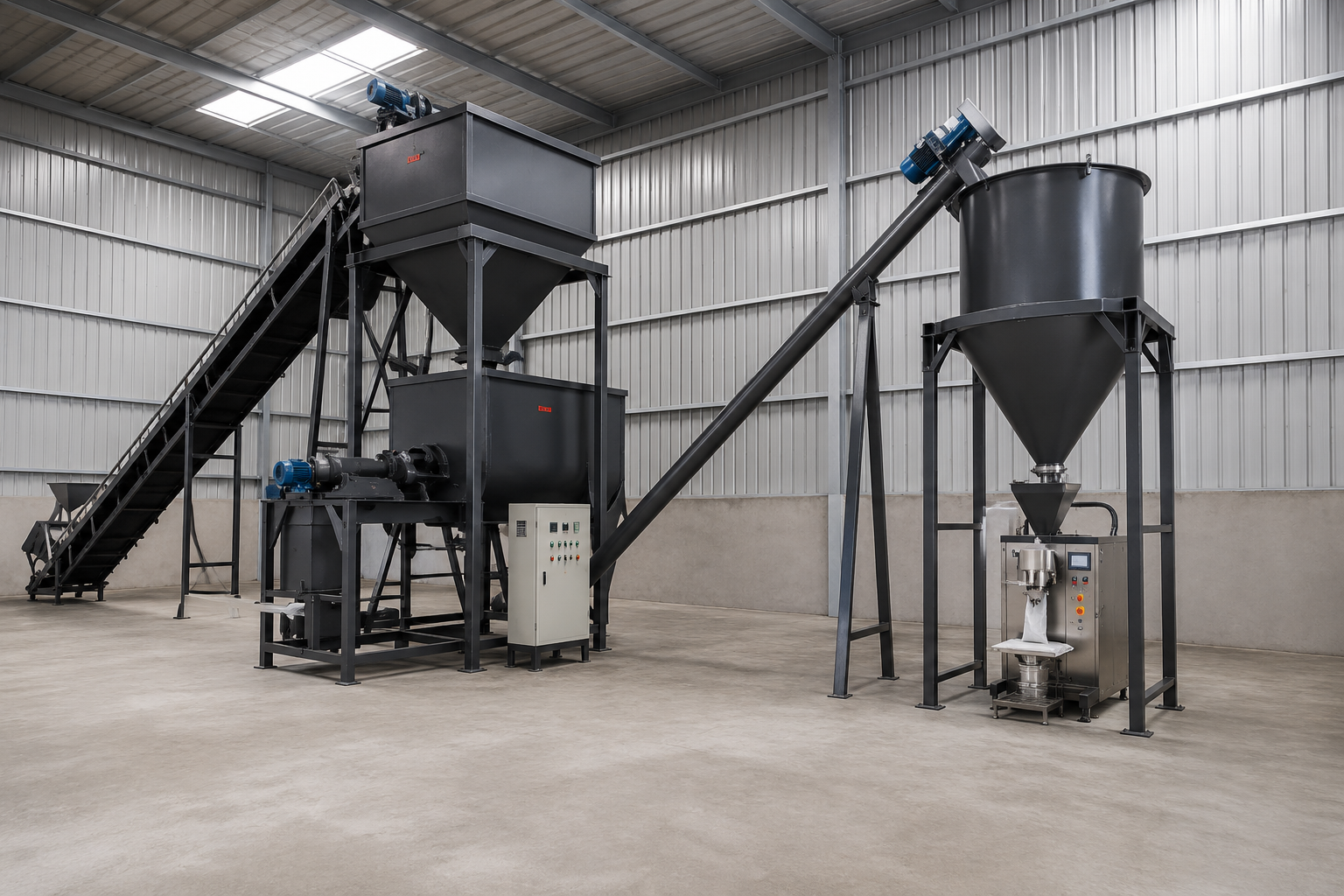

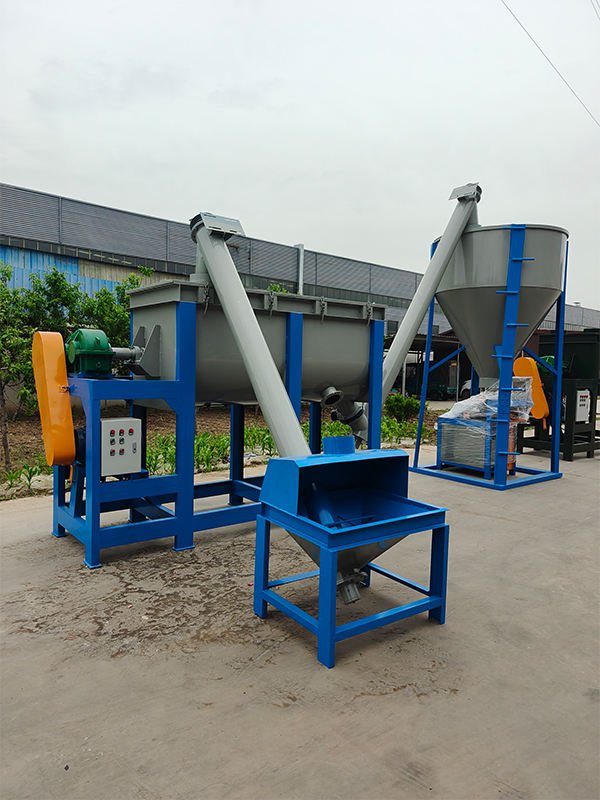

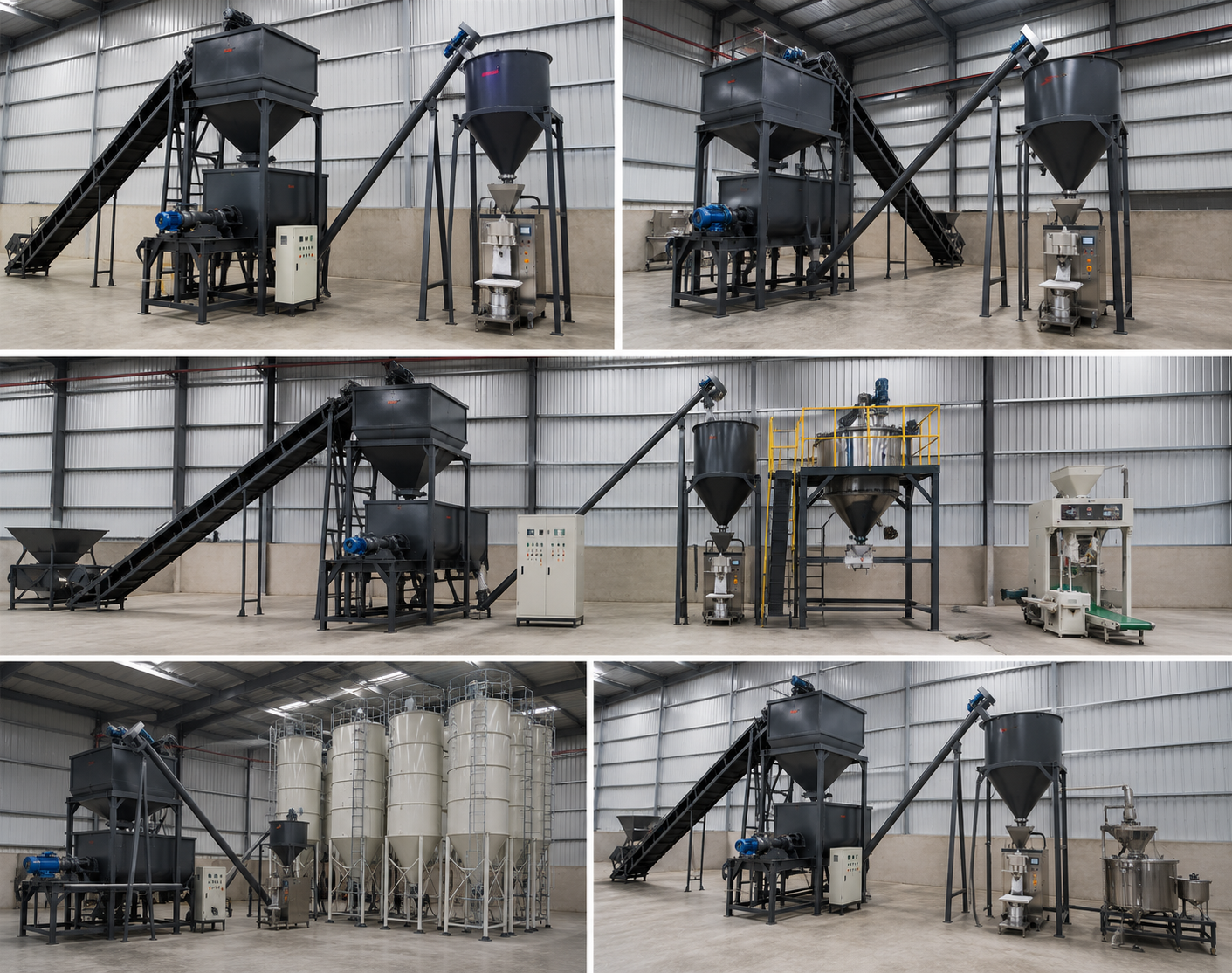

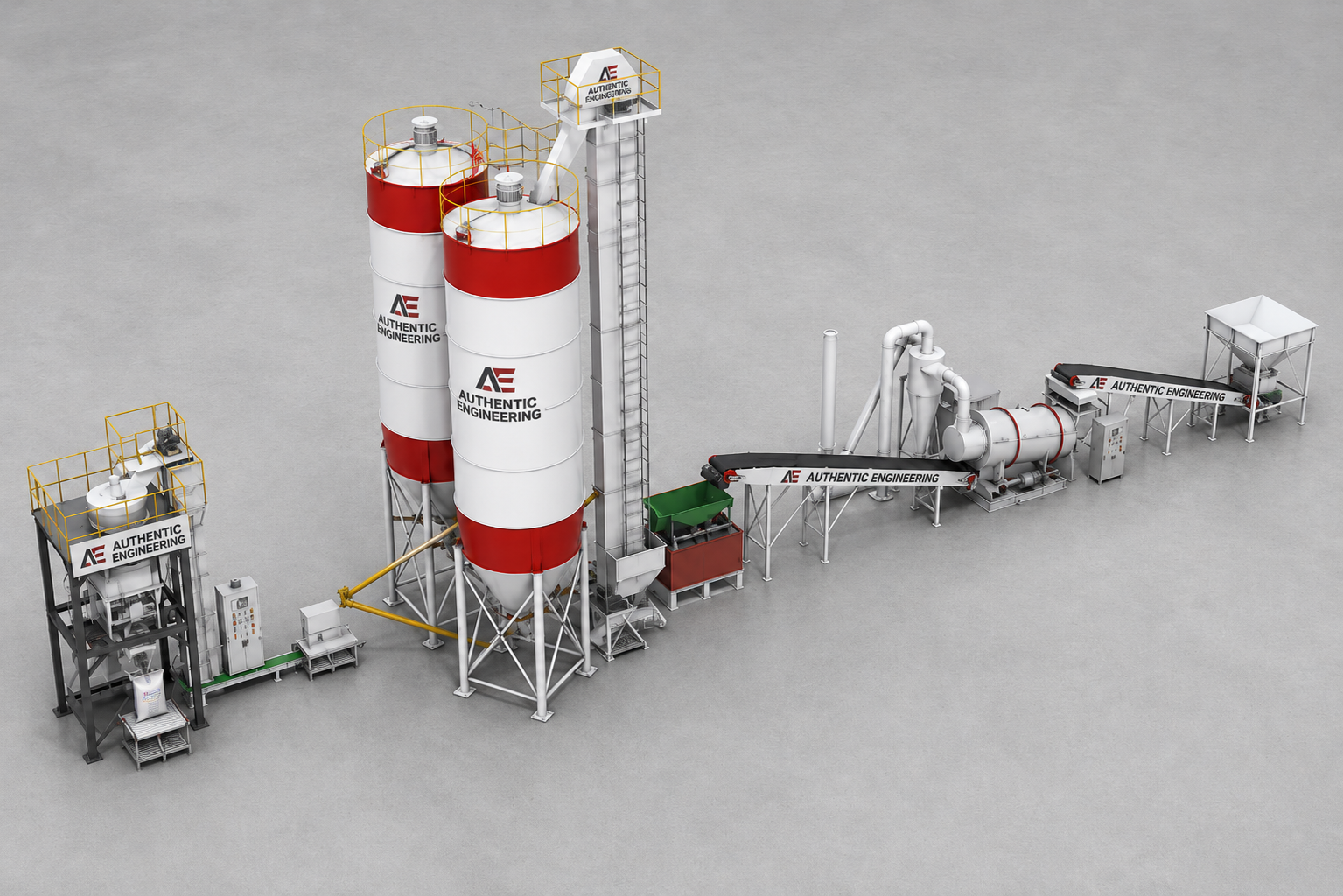

Our Tile Adhesive Full Plant is a turnkey dry mix manufacturing solution for producing cementitious tile adhesives, wall putty, tile grout, and construction chemical powders. The integrated plant covers raw material storage, dosing, high-intensity mixing, homogenising, and automated bagging — delivering consistent product quality to industry standards.
What This Machine Does
This Tile Adhesive Full Plant automatically weighs and portions products with high accuracy, dispensing precise quantities into bags, pouches, or containers. It ensures consistent packaging weight at high throughput speeds.
Products You Can Make
This machine is designed to process and package a wide range of products:
Technical Parameters
| Capacity | 2 TPH – 30 TPH |
| Raw Material Silos | Cement, Sand, Additives (individual silos) |
| Dosing | Gravimetric weigh belt or loss-in-weight |
| Mixer | Pan mixer / Ribbon mixer / Plough shear mixer |
| Packing | Open-mouth bag filler (25 kg / 50 kg bags) |
| Dust Control | Bag filter dust collector on all transfer points |
| Control | PLC with recipe management & batch reporting |
| Standards | IS 15477 / EN 12004 for tile adhesive |
Flow Chart

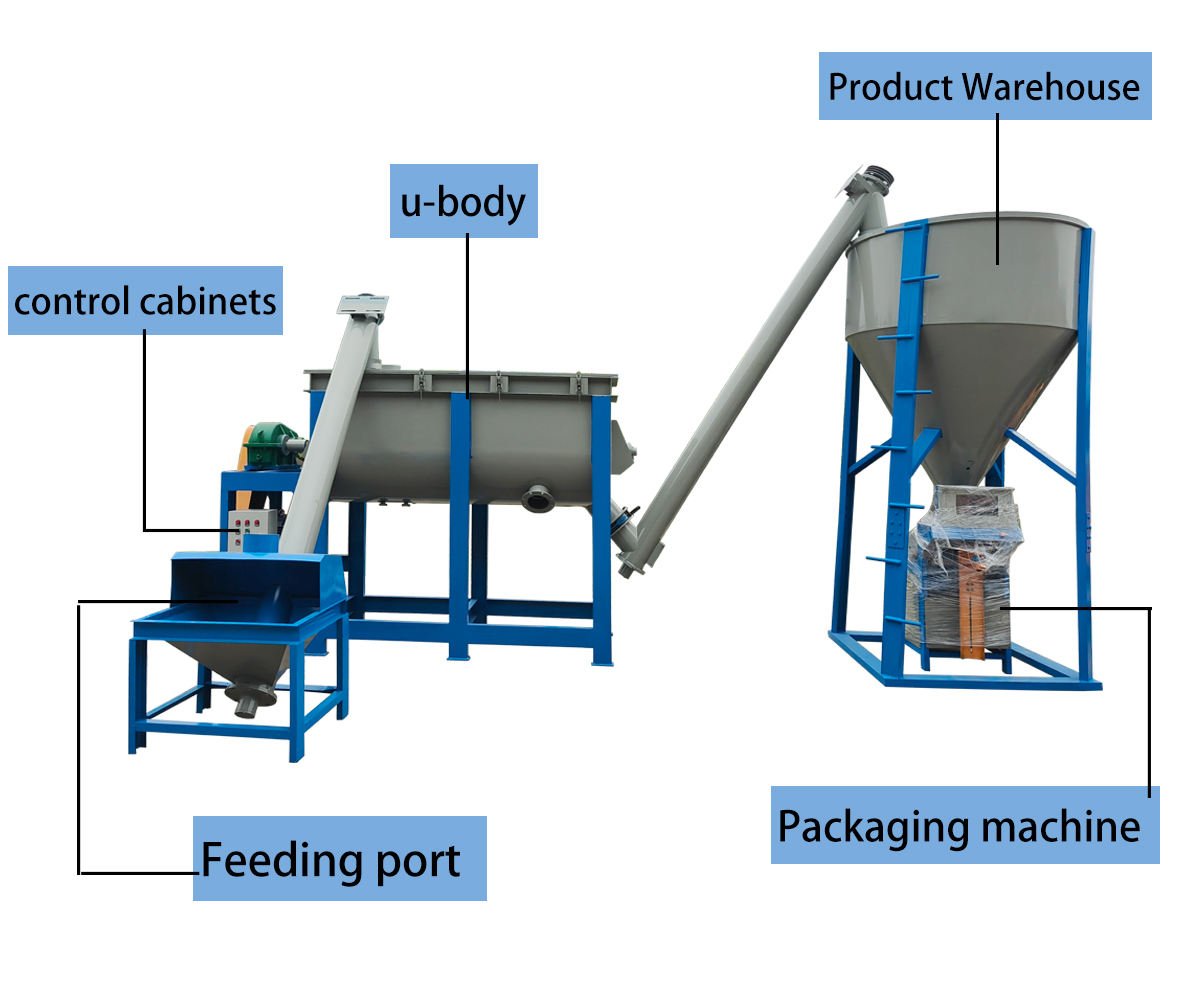

Raw Material Silos (Cement/Sand/Additive) → Gravimetric Dosing → Dry Mixer → Homogeneous Powder → Vibro Sifter → Open-mouth Bag Filler → Bag Sealer → Palletiser
Line Features & Advantages
- Gravimetric multi-component dosing ensures consistent formulation every batch
- High-intensity mixer achieves homogeneous blend of cement, sand, and polymer additives
- Integrated dust collection at every transfer point — dust-free plant operation
- PLC recipe management stores multiple grades (C1, C2, D2) for quick changeover
- Automatic open-mouth bagger fills 25 kg and 50 kg bags with high accuracy
- Compliant with IS 15477 and EN 12004 product standards for tile adhesives
Frequently Asked Questions
Q: Can the same plant produce tile adhesive, wall putty, and tile grout?
A: Yes, with PLC recipe management and appropriate raw material silos, the same plant produces multiple dry mix construction products by selecting the appropriate formulation recipe.
Q: How accurately is the material proportioned?
A: Gravimetric loss-in-weight or weigh-belt dosing achieves formulation accuracy within ±0.5%, ensuring every bag meets the specified product grade and performance standard.
Q: What is the production capacity of the Tile Adhesive Full Plant?
A: The Tile Adhesive Full Plant is available in multiple capacity configurations to match your production requirements. Contact our engineering team for customized capacity specifications and throughput details.
Q: What are the power requirements for the Tile Adhesive Full Plant?
A: Power requirements vary based on the specific model and capacity selected. Our Tile Adhesive Full Plant models are designed for energy-efficient operation. Contact us for detailed electrical specifications for your chosen configuration.
